The Role of new Languages in the Future of the Qt Ecosystem.

Dr. Cristián Maureira-Fredes
maureira.dev
@cmaureir

Snapshot from https://youtu.be/kiw4fQH9vb8

Keynote: Building the Future of Qt, Together

Volker Hilsheimer
(Akademy 2022)

        #ifndef MAINWINDOW_H
        #define MAINWINDOW_H

        #include <QMainWindow>
        #include <QPushButton>

        class MainWindow : public QMainWindow
        {
            Q_OBJECT
            public:
                MainWindow(QWidget *parent = nullptr);
            private slots:
                void handleButton();
            private:
                QPushButton *m_button;
        };

        #endif // MAINWINDOW_H

        #include "mainwindow.h"

        MainWindow::MainWindow(QWidget *parent)
           : QMainWindow(parent)
        {
            m_button = new QPushButton("My Button", this);
            connect(m_button, SIGNAL(clicked()), this, SLOT(handleButton()));
        }

        void MainWindow::handleButton()
        {
            m_button->setText("Ready");
        }

        #include
        #include "mainwindow.h"

        int main(int argc, char *argv[])
        {
            QApplication app(argc, argv);
            MainWindow mainWindow;
            mainWindow.show();
            return app.exec(d);
        }

        import sys
        from PySide6.QtCore import Slot
        from PySide6.QtWidgets import QApplication, QMainWindow, QPushButton

        class MainWindow(QMainWindow):
            def __init__(self, parent=None):
                QMainWindow.__init__(self, parent)
                self.button = QPushButton("My Button", self)
                self.button.clicked.connect(self.handle_button)

            @Slot()
            def handle_button(self):
                self.button.setText("Ready")

        if __name__ == "__main__":
            app = QApplication(sys.argv)
            mainWindow = MainWindow()
            mainWindow.show()
            sys.exit(app.exec())

    #include <iostream>

    using namespace std;

    int main() {
        int nums[] = {1,2,3,4,5};
        int five = nums[1] + nums[2];
        cout << "Result: " << five";
    }


    fn main() {
        let arr: [i32; 5] = [1, 2, 3, 4, 5];
        let five = arr[1] + arr[2];
        println!("Result: {}", five);
    }


    class Person {
      public:
        Person(string n, int a);
        void talk();
        string name;
        int age;
    };
    Person::Person(string n, int a){
        name = n;
        age = a;
    }
    void Person::talk(){
        cout << name << " says Hello!\n";
    }

    int main() {
        Person maria("Maria", 22);
        maria.talk();
    }


    // declare a struct
    struct Person {
        name: String,
        age: i32
    }
    impl Person {
        fn speak(&self){
            println!("{} says Hello!",
              self.name);
        }
    }

    fn main() {
        let maria = Person{
          name: String::from("Maria"),
          age: 5
        };
        maria.speak();
    }


    #[cxx_qt::bridge]
    pub mod qobject {
      unsafe extern "C++" {
        include!("cxx-qt-lib/qstring.h");
        type QString = cxx_qt_lib::QString;
      }
      unsafe extern "RustQt" {
        #[qobject]
        #[qml_element]
        #[qproperty(i32, number)]
        #[qproperty(QString, string)]
        type MyObject = super::MyObjectRust;
      }
      unsafe extern "RustQt" {
        #[qinvokable]
        fn increment_number(self: Pin<&mut MyObject>);
        #[qinvokable]
        fn say_hi(self: &MyObject,
                  string: &QString,
                  number: i32);
      }
    }


Snippet from: github.com/KDAB/cxx-qt/tree/main/examples/qml_minimal

• CXX - safe FFI between Rust and C++
• Idiomatic C++ and Rust
• Macros → Bindings
• Rust threads → update Qt state
• Still in development

        #ifndef MAINWINDOW_H
        #define MAINWINDOW_H

        #include <QMainWindow>
        #include <QPushButton>

        class MainWindow : public QMainWindow
        {
            Q_OBJECT
            public:
                MainWindow(QWidget *parent = nullptr);
            private slots:
                void handleButton();
            private:
                QPushButton *m_button;
        };

        #endif // MAINWINDOW_H

        #include "mainwindow.h"

        MainWindow::MainWindow(QWidget *parent)
           : QMainWindow(parent)
        {
            m_button = new QPushButton("My Button", this);
            connect(m_button, SIGNAL(clicked()), this,
              SLOT(handleButton()));
        }

        void MainWindow::handleButton()
        {
            m_button->setText("Ready");
        }

        #include <QApplication>
        #include "mainwindow.h"

        int main(int argc, char *argv[])
        {
            QApplication app(argc, argv);
            MainWindow mainWindow;
            mainWindow.show();
            return app.exec(d);
        }

        import sys
        from PySide6.QtCore import Slot
        from PySide6.QtWidgets import (
          QApplication, QMainWindow, QPushButton
        )

        class MainWindow(QMainWindow):
            def __init__(self, parent=None):
                QMainWindow.__init__(self, parent)
                self.b = QPushButton("My Button", self)
                self.b.clicked.connect(self.handle_button)

            @Slot()
            def handle_button(self):
                self.b.setText("Ready")

        if __name__ == "__main__":
            app = QApplication(sys.argv)
            mainWindow = MainWindow()
            mainWindow.show()
            sys.exit(app.exec())

    import sys
    from PySide6.QtCore import Slot
    from PySide6.QtWidgets import (
      QApplication, QMainWindow, QPushButton
    )

    class MainWindow(QMainWindow):
        def __init__(self, parent=None):
            QMainWindow.__init__(self, parent)
            self.b = QPushButton("My Button", self)
            self.b.clicked.connect(self.handle_button)

        @Slot()
        def handle_button(self):
            self.b.setText("Ready")

    if __name__ == "__main__":
        app = QApplication(sys.argv)
        mainWindow = MainWindow()
        mainWindow.show()
        sys.exit(app.exec())

• Inheriting from a Qt class
• Understand Qt-API
• Connecting a button with a Slot
• Decorating a method as a Slot
• Event loop
• Writing a Qt application in Python from scratch

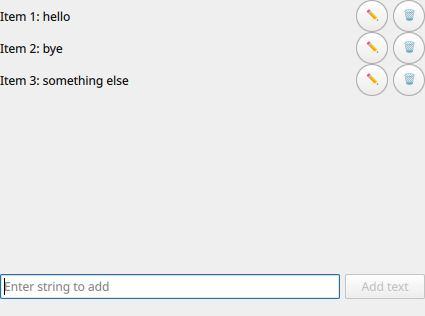

pragma ComponentBehavior: Bound

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import QtQml.Models
import minimalapp

ApplicationWindow {
    id: root

    Timer {
        id: clearStatusTimer
        interval: 1500
        onTriggered: statusDisplay.text = ""
    }

    Connections {
        target: Backend
        function onDuplicateFound(duplicate) {
            statusDisplay.text = `List already contains entry ${duplicate}!`
            clearStatusTimer.restart();
        }
    }

    width: 640
    height: 480
    visible: true
    title: qsTr("Minimal QML app")
    ColumnLayout {
        id: mainLayout
        anchors.fill: parent
        ListView {
            id: lv
            model: Backend.list
            delegate: Control {
                id: ld
                required property var model
                required property int index
                width: lv.width
                implicitHeight: Math.max(textLabel.implicitHeight, deleteButton.implicitHeight)
                RowLayout {
                    anchors.fill: parent
                    Label {
                        property bool inEditMode: false
                        id: textLabel
                        text: inEditMode ? "" : `Item ${ld.index+1}: ${ld.model.edit}`
                        Layout.fillWidth: true
                        TextInput {
                            id: editField
                            visible: textLabel.inEditMode
                            anchors.fill: parent
                            onEditingFinished: {
                                textLabel.inEditMode = false
                            }
                            onAccepted: {
                                ld.model.edit = text
                            }
                        }
                    }
                    RoundButton {
                        text: "✏️"
                        down: textLabel.inEditMode || pressed
                        onReleased: () => {
                            if (textLabel.inEditMode) {
                                textLabel.inEditMode = false
                            } else {
                                editField.text = `${ld.model.edit}`
                                textLabel.inEditMode = true
                                editField.forceActiveFocus()
                                editField.selectAll()
                            }
                        }
                    }
                    RoundButton {
                        id: deleteButton
                        text: "🗑️" // could use icons if we could ensure we have them
                        onReleased: () => { lv.model.removeRow(ld.index) }
                    }
                }
            }
            Layout.fillHeight: true
            Layout.preferredWidth: mainLayout.width
        }

        RowLayout {
            implicitHeight: Math.max(input.implicitHeight, submitButton.implicitHeight)
            TextField {
                id: input
                placeholderText: "Enter string to add"

                function submit() {
                    Backend.addString(input.text)
                    input.clear()
                }

                onAccepted: submit()
                Layout.preferredWidth: mainLayout.width * 0.8
            }
            Button {
                id: submitButton
                text: "Add text"
                enabled: input.text !== ""
                onReleased: input.submit()
            }
        }
    }

    footer: Text {
        id: statusDisplay
    }
}

using System;

class Program
{
  static int AddNumbers(int num1, int num2)
  {
    return num1 + num2;
  }

  static void Main(string[] args)
  {
    int result = AddNumbers(40, 2);
    Console.WriteLine($"The sum is {result}");
  }
}


• OOP
• Type safety and strong typing
• Memory management (GC)
• Platform Independence (Windows, macOS and Linux)
• Rich Standard Library *Base Class Library)
• Language Integrated Query (LINQ)
• Async/await, Generics, Lambda expressions, etc

// Backend.cs
using Qt.Quick;

namespace Qt.DotNet.QmlNext.MinimalApp
{
  [QmlElement(Singleton = true)]
  public class Backend
  {
    public UniqueStringListModel List { get; } = new();

    public Backend()
    {
        List.DuplicateFound += OnDuplicateFound;
    }

    public bool AddString(string newValue)
    {
        return List.AddString(newValue);
    }

    public delegate void DuplicateFoundHandler(object sender,
      DuplicateFoundArgs args);
    public event DuplicateFoundHandler DuplicateFound;

    private void OnDuplicateFound(object sender,
      DuplicateFoundArgs args)
    {
        DuplicateFound?.Invoke(this, args);
    }
  }

  public class DuplicateFoundArgs : EventArgs
  {
    public string Value { get; set; }
    public override string ToString()
    {
        return Value;
    }
  }
}


// Main.cs
using Qt.Quick;

namespace Qt.DotNet.QmlNext.MinimalApp
{
    public class Program
    {
        public static void Main(string[] args)
        {
            Qml.LoadFromModule("Main");
            Qml.WaitForExit();
        }
    }
}


import Foundation

func addNumbers(_ num1: Int, _ num2: Int) -> Int {
  return num1 + num2
}

func main() {
  let result = addNumbers(40, 2)

  print("The sum is: \(result)")
}

main()


• Safety and Performance
• Modern syntax
• Type Safety and type inference
• Optionals
• Memory management (Automatic Reference Counting, ARC)
• Functional programming
• Protocol-Oriented Programming
• Interoperability with Objective-C
• Generics, Pattern matching, etc

// main.swift (1/2)
@QtBridgeable
public class ListModel {
  @Published var list: [String] = ["test string"]
  @Published var duplicateStringFound : String = ""

  public func editString(index: Int, newString: String) {
    if list.contains(newString) {
        postDuplicateNotification(with: newString)
    } else {
        list[index] = newString
    }
  }

  public func addString(newString: String) {
    if list.contains(newString) {
        postDuplicateNotification(with: newString)
    } else {
        list.append(newString)
    }
  }

  public func removeString(index: Int) {
    list.remove(at: index)
  }

  private func postDuplicateNotification(with duplicateString: String) {
    duplicateStringFound = duplicateString
  }
}


// main.swift (2/2)
var app = QApp()

var model = ListModel()
app.addInitialProperty(name: "listModel", model: model)

let qmlPath = Bundle.module.url(forResource: "main",
                withExtension: "qml")!.path
app.setRootQml(path: qmlPath)

app.run(argc: CommandLine.argc,
        argv: CommandLine.unsafeArgv)



public class Program {

  public static int addNumbers(int num1, int num2) {
    return num1 + num2;
  }

  public static void main(String[] args) {
    int result = addNumbers(40, 2);

    System.out.println("The sum is " + result);
  }
}


• Platform Independence
• OOP
• Automatic Memory Management (GC)
• Strong Type System
• Security (management and bytecode verification)
• Multithreading, Rich Standard Library, Large ecosystem

// Backend.java
package org.qt.bridge;

import org.qt.bridge.core.QtObject;
import org.qt.bridge.core.QtState;
import org.qt.bridge.core.QtStateModelList;

@QMLRegistrable(name = "Backend")
public class ViewModel extends QtObject {

  @BindConnection
  QCallback qtCallback;

  private final Repository db = new Repository();
  private final QtState<Integer> size = new QtState<>(this,0);
  private final QtStateModelList<String> list = new \
        QtStateModelList<>(db.fetchAll());
  {
    list.observe(item -> size.update(item.size()));
  }

  public void addString(String item) {
    if (item.isBlank()) {
      if (qtCallback != null) {
        qtCallback.blankFound();
      }
      return;
    }
    if (list.contains(item)) {
      if (qtCallback != null) {
        qtCallback.duplicateFound(item);
      }
      return;
    }
    list.addState(item);
  }

  public void update(int index, String updatedValue) {
    if (list.contains(updatedValue)) {
      if (qtCallback != null) {
        qtCallback.duplicateFound(updatedValue);
      }
      return;
    }
    list.updateStateAt(index, updatedValue);
  }

  public void remove(int index) {
    list.removeStateAt(index);
    if (qtCallback != null) {
      qtCallback.erased();
    }
  }
}


// QCallback
package org.qt.bridge;

public interface QCallback {
    void duplicateFound(String item);
    void erased();
    void blankFound();

}


// Main.java
package org.qt.bridge;

import org.qt.bridge.app.QtQuickApplication;

public class Main {

    public static void main(String[] args) {
        final QtQuickApplication app = new QtQuickApplication(args);
        app.registerQmlSingleton(new ViewModel());
        app.execute();
    }
}


def add_numbers(a: int, b: int) -> int:
  return a + b


def main():
  result = add_numbers(40, 2)
  print(f"The sum is {result}")


if __name__ == "__main__":
  main()


• OOP
• Simple and readable syntax
• Dynamic typing
• High level language
• Extensive standard library
• Huge ecosystem
• Versatility, rapid development and educational value

// main.py (1/2)
import sys
from PySide6.QtGui import QGuiApplication
from PySide6.QtQml import QQmlApplicationEngine
from QtBridges import AutoQmlBridge, updateQML

class StringModel:
  def __init__(self):
    self._items = ["Apple", "Banana"]

  @updateQML
  def add_string(self, value: str):
    if value in self._items:
      print(f"Duplicate found: {value}")
      return False
    self._items.append(value)
    return True

  def delete_string(self, value: str):
    if value in self._items:
      self._items.remove(value)
      print(f"Deleted item: {value}")
      print(self._items)
      return True
    return False

  def set_item(self, index: int, value: str):
    if 0 <= index < len(self._items):
      self._items[index] = value
      print(f"Item at index {index} set to {value}")
      print(self._items)
      return True
    return False

  @property
  def items(self) -> list[str]:
    return self._items

  def data(self) -> list[str]:
    return self._items


// main.py (2/2)
if __name__ == "__main__":
    app = QGuiApplication(sys.argv)
    engine = QQmlApplicationEngine()

    # Register with QML
    string_model = StringModel()
    AutoQmlBridge(string_model, data_type="List")

    engine.addImportPath(sys.path[0])
    engine.loadFromModule(".", "Main")

    if not engine.rootObjects():
        sys.exit(-1)

    sys.exit(app.exec())


fn add_numbers(num1: i32, num2: i32) -> i32 {
    num1 + num2
}

fn main() {
  let result = add_numbers(40, 2);

  println!("The sum is: {}", result);
}


• Memory safety without GC
• Ownership system
• Zero-cost abstractions
• Concurrency safety
• Performance
• Strong type system
• Cargo
• Community and ecosystem
• Functional programming, pattern matching, trait system, etc

// backend.rs
use qt_gen::qobject_impl;
use qt_type_lib::{QVariant, QStringList,
                  QModelIndex, QSignalBlocker};

#[derive(Default)]
pub struct Backend {
}

#[qobject_impl(Base = QStringListModel)]
impl Backend {
  #[overridden]
  fn set_data(&mut self, index: &QModelIndex,
      value: &QVariant, role: i32) -> bool {
    if let Ok(value_str) = String::try_from(value) {
      if self.string_list().contains(&value_str) {
        self.duplicate_found(&value_str);
        return false;
      }
    }

    self.base_set_data(index, value, role)
  }

  #[qslot]
  fn add_string(&mut self, value: &str) {
    if self.string_list().contains(&value) {
      self.duplicate_found(&value);
    }
    else {
      self.append_prechecked_string(value);
    }
  }

  fn append_prechecked_string(&mut self, new_value: &str) {
    let current_count = self.row_count(&QModelIndex::default());
    self.begin_insert_rows(&QModelIndex::default(),
      current_count, current_count);
    {
      let _signal_blocker = QSignalBlocker::new(
        <Self as bridge::QObjectProxy>::get_qobject(self));
      let mut new_list = self.string_list();
      new_list.append(new_value);
      // decrements refcount of list
      self.set_string_list(&QStringList::default());
      self.set_string_list(&new_list);
    }
    self.end_insert_rows();
  }

  #[qsignal]
  fn duplicate_found(&self, duplicate: &str);
}



// main.rs
use bridge::QObjectHolder;
use qt_type_lib::{QGuiApplication, QQmlApplicationEngine, QVariantMap};

mod backend;
use backend::Backend;

fn main() {

  let mut backend = QObjectHolder::new(Backend::default());

  let _app = QGuiApplication::new();
  let mut qml_engine = QQmlApplicationEngine::new();

  let mut properties = QVariantMap::default();
  properties.insert("backend", &backend.as_qobject_mut().into());
  qml_engine.pin_mut().set_initial_properties(&properties);

  let main_qml = include_bytes!("Main.qml");
  qml_engine.pin_mut().load_data(main_qml);

  QGuiApplication::exec();
}


Q&A

The Role of new Languages in the Future of the Qt Ecosystem.

Dr. Cristián Maureira-Fredes
@cmaureir
